OUR PRODUCTS

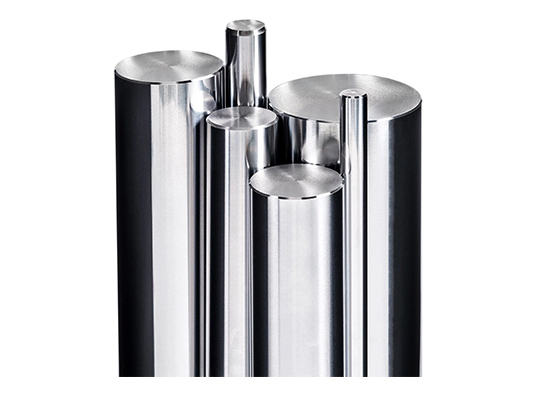

BRIGHT GROUND BAR
Bright Bars have a smooth and a Bright surface with Accurate Tolerance on the Dia.

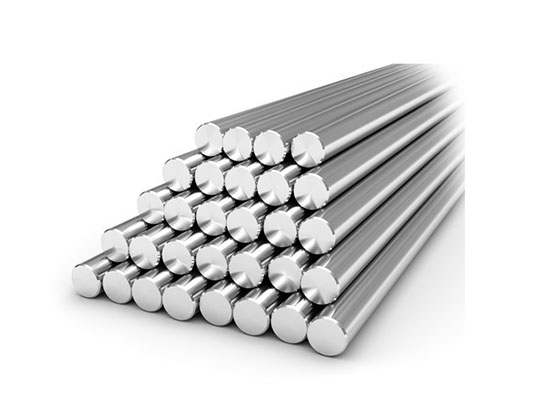

stainless steel
Our Stainless Steel Bright Bars are widely used in several industries like automobile, electric motors, railways, defence, and shaft making. We are manufacturing major SS Grade Products like Like SS410, AISI 304L, AISI 303, AISI 316L, and AISI 304L.

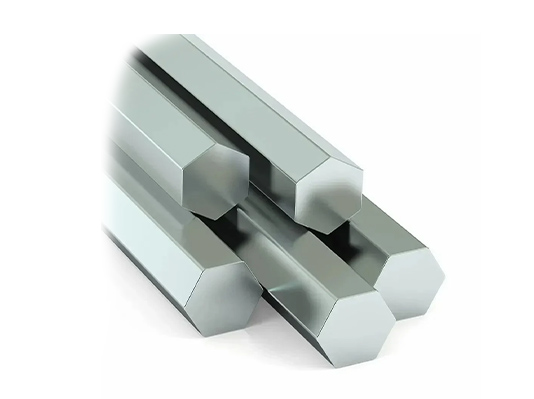

HEXAGONAL BRIGHT BAR
We extend a qualitative range of Hexagonal Bright Bar to our clients that is manufacturer in
compliance with set industry standards.

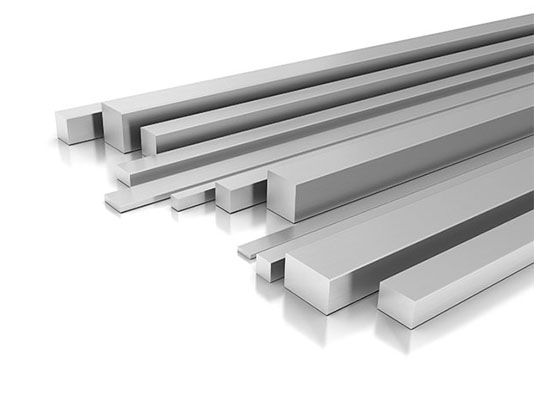

PEELED & GROUND BAR
Peeled and ground Bars are made from Hot Rolled Bars through the process of Pre straightening, Peeling, reeling and Centreless Grinding.

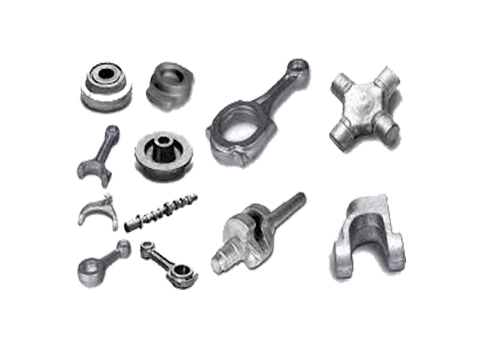

FORGED COMPONENTS
Our products are designed and developed in compliance with international quality standards and offer superior performance. Known for precision engineering these are widely used in Automobile & Electrical Industry.

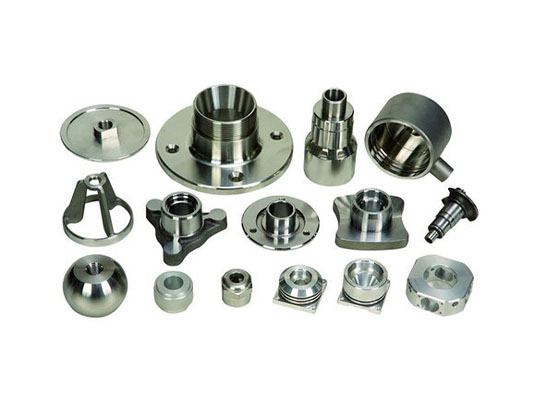

MACHINED COMPONENTS
A wide variety of machined parts can be produced by CNC machining technology. Precision bright Europe Inc. is a leading provider of CNC machining services and machined parts and components.

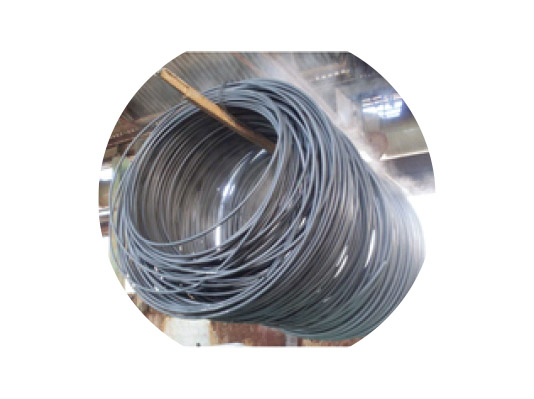

PHOSPATED COILS
A pretreatment method for corrosion protection. Meaning phosphating on metal reacts chemically to provide an insoluble crstalline layer.

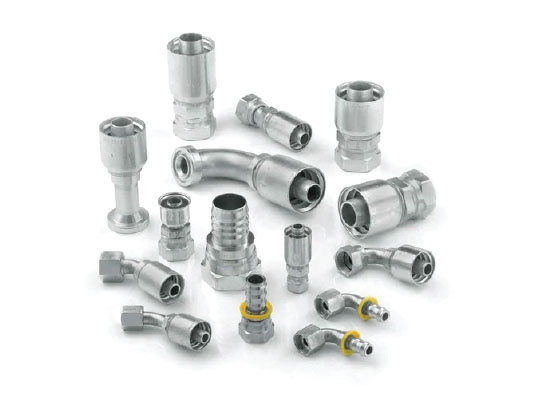

HYDRAULIC NIPPLES
We provide our clients an industrially verified collection of stainless steel pipe nipples, nipple pipe fittings and pipe fitting nipples that are widely appreciated by our clients owing to its high tensile strength.

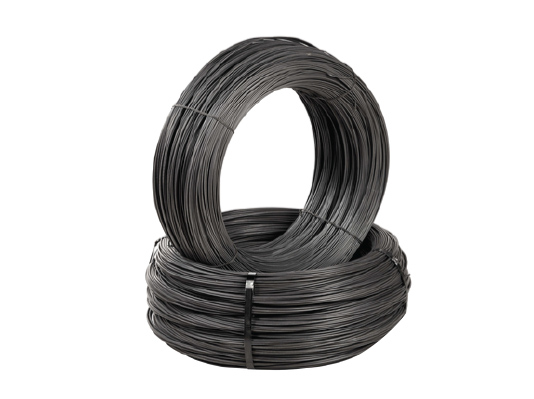

ANNEALED & PHOSPHATED COILS
The machinability of various
grades of steel can be improved by an annealing process. The toughness can be increased by normalizing.

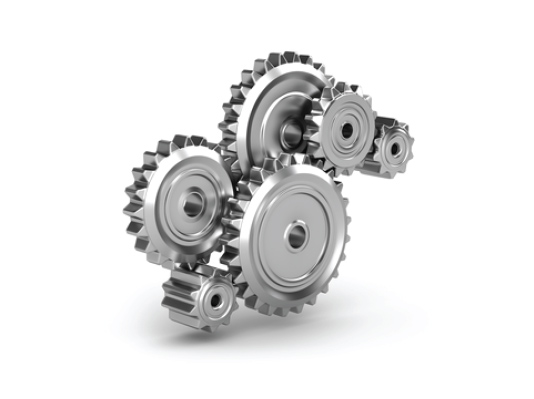

ASSEMBLY COMPONENTS
Assembly components and the parts to the exact specification require both expertise and proper technology in precision bright we have a wonderful team to get the perfect products.

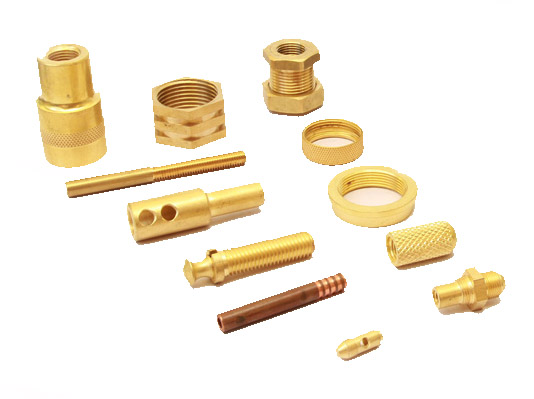

brass components
Our excellent quality of products and world-class customer services has holds the name as the well-known brass part manufacturer and supplier among the top brass components manufacturer companies in the world .

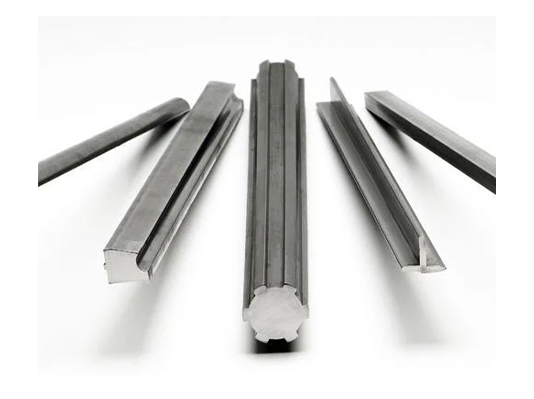

PROFILE BRIGHT BAR
Profile Bright steel bars are massively used in producing mechanical parts owing to its paramount properties in mechanical and dimensional fields.

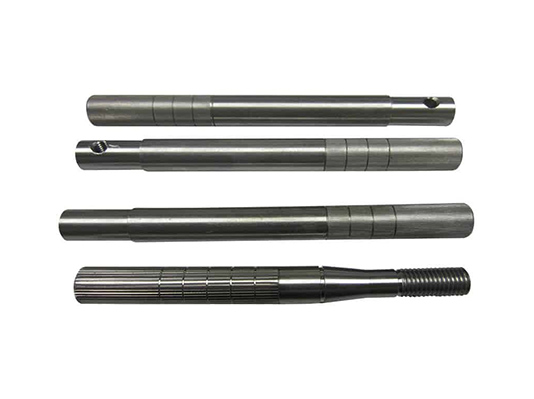

ARMATURE SHAFT
Our manufactured shafts are top notch in quality and resistant to scratches & rust. Our wide range of shafts is available in market so as to meet diverse demands of our clients from automobile industries.

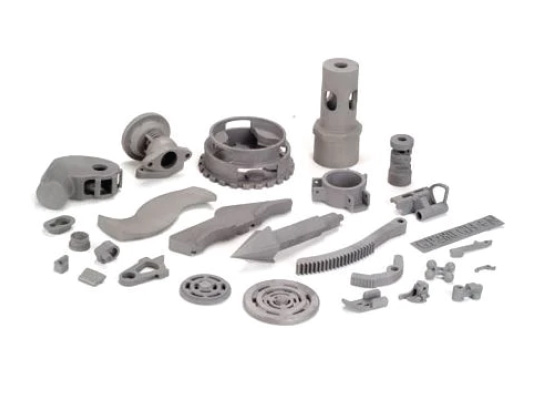

ENGINEERING COMPONENTS
No Engineering industry can do without the Machined components. They are needed from relatively simple designs to the most complex ones. And machining the parts to the exact specification requires both expertise and proper technology.

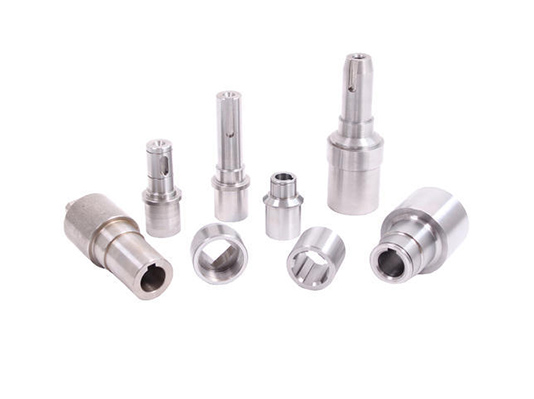

aluminium components
We are equipped with impeccable state of the art infrastructure, which enables us to machine superior quality precision Aluminium components with or without anodizing as per customer specification.

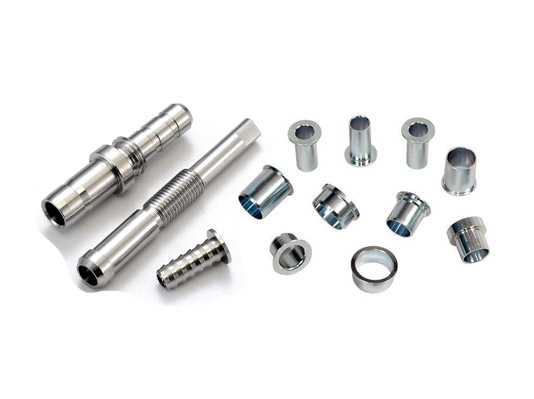

turned components
Our components are available to suit different industry such as textiles, foundries, mining and many more. The components in industry leading rates are offered to our clients.
GENERAL COMPONENTS
Precision bright Europe Inc. is a leading provider of all auto general components and machining the parts to the exact specification requires both expertise and proper technology.

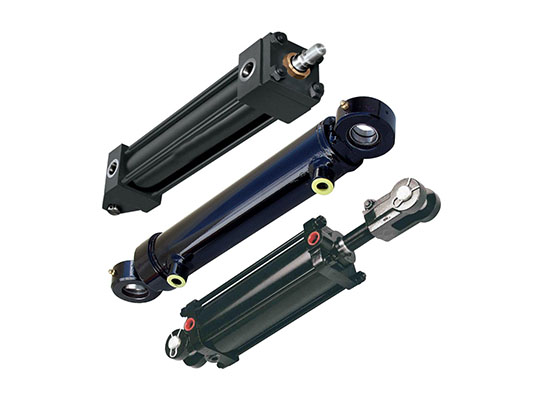

hydraullic cylinders
We manufacture hydraulic cylinder under the brand name of hydromacs of Tie rod type / welded type / threaded type / Boldted type construction. Standard & / non / standard Cylinders.
MS GRADE SPECIFICATIONS
| BS 970 | C | Mn | Si | S | P | Ni | Mo | Cr | Is-1570- 1961 | SAE/AISI | DIN | AFNOR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EN 1A | .07/.15 | .80/1.20 | .10 Max | 0.2/0.3 | .07Max | - | - | - | 13525 | 1113 | 9527 | 12MFA |
| EN2B | .15 Max | .50 Max | .10 Max | .05Max | .05Max | - | - | - | c-07 | 1010 | St 0,1 | X-C 10 |
| EN2C | .15/.25 | .40/.60 | .10 Max | .05Max | .05Max | - | - | - | C15MN75 | 1018 | H111 | |
| EN3B | .25Max | 1.0Max | .35 Max | .06Max | 0.6max | - | - | - | ||||
| EN3D | .15/.25 | .60/1.0 | .05/.35 | .06 Max | .06 Max | - | - | - | ||||
| EN8 | .35/.45 | .60/1.0 | .05/.35 | .06 Max | .06 Max | - | - | - | C-40 | 1038/1040 | Ck35/ 40Mn4 | X-C 38 |
| EN8D | .40*.45 | .70/.90 | .05/.35 | .06 Max | .06 Max | - | - | - | ||||
| EN8M | .33/.38 | .80/1.30 | .25 Max | - | - | - | - | - | 40S18 | 1139 | ||
| EN9 | .50/.60 | .50/.80 | .05/.80 | .05/.35 | - | - | - | C55MN75 | 1055 | CK-50 | CC55F | |
| EN15AM | .30/.40 | 1.3/1.7 | .25 Max | - | - | - | - | - | 40Mn2S12 | 1137 | ||
| EN18 | .35/.45 | .60/.95 | .10/.35 | - | - | .85/1.15 | 40CR1 | 5140 | 37Cr4 | |||
| EN19 | .35/.45 | .50/.80 | .10/.35 | - | .20/.40 | .90/1.50 | 40Cr1M028 | 4140/ 4142 | ||||
| EN19C | .45/.50 | .50/.80 | .10/.35 | .20/.35 | .90/1.20 | - | ||||||
| EN24 | .35/.45 | .45/.70 | .10/.35 | 1.3/1.8 | .20/.35 | .90/1.40 | 40Ni2CrlM028 | 4340 | 34CrN1M06 | 35NCD6 | ||
| EN31 | .90/1.20 | .30/.75 | .10/.35 | - | - | 1.0/1.6 | 103cRL | 52100 | 100Cr6 | |||
| EN32B | .10/.18 | .70/1.10 | .05/.35 | - | - | - | C14 | 1015 | Ck 15 | XC 12 | ||
| EN36C | .12/.18 | .30/.60 | .10/.35 | 3/3.75 | .10/.25 | .60/1.1 | ||||||
| EN42J | .75/.90 | .60/.90 | .35 Max | |||||||||
| EN353 | .20 Max | .05/1.0 | .35 Max | 1.0/1.5 | .08/.15 | .75/1.25 | 15NiCrMo12 | 18NCD6 |
STEEL GRADE/SPECIFICATIONS
| HOT ROLLED ROUND BARS | 16MM TO 160MM |
| BRIGHT BARS COLD DRAWN POLISH | 4MM TO 22MM |
| BRIGHT BARS CENTRELESS GROUND BARS | 16MM TO 80MM |
| BRIGHT BARS PEELED POLISHED | 50MM TO 100MM |
| HEXAGONAL BARS | 12MM TO 50MM |
| SQUARE BARS | 12MM TO SOMM |
| EQUAL ANGLE BARS | UPTO 100*100 MM |
| FLAT BARS | UPTO 150*65 MM |
| PUMP SHAFT QUALITY (PSG) BARS | 12MM TO SOMM |
| FORGED ROUND BARS | 160MM TO 400MM |
STEEL GRADE/SPECIFICATIONS
| SIZE TOLERANCES | h8, h9, h10, h11, k12, k13, EN-10060 |
| SUPPLY CONDITIONS | Annealed, Solution Annealed, Strain Hardened, Quenched Tempered, Double Ageing, Double Tempering |
| TESTING | Tensile Test, Hardness Test, Impact Test, Ultrasonic Test, MPI Test |
| CHAMFERING | Available in 30/45/60 Degree Both Ends |
| LENGTH TOLERANCE | Cut to length with tolerance -0/+10 mm |
| STRAIGHTNESS | Up to 0.25mm per meter |
| PACKING | Bars are packed in bundles. Each bar color coded then wrapped in HDPE and strapped along with identification labels on each bundle. |
| MATERIAL GRADES (AISI) | 201, 202, 303, 304, 304H, 304L, 316, 316H, 316L, 309, 310, 316Ti, 317, 347, 321, 410, 416, 420, 420J2, 430, 430F, 431, 630, 17-4 PH, 15-4 PH, F51, F60 |
